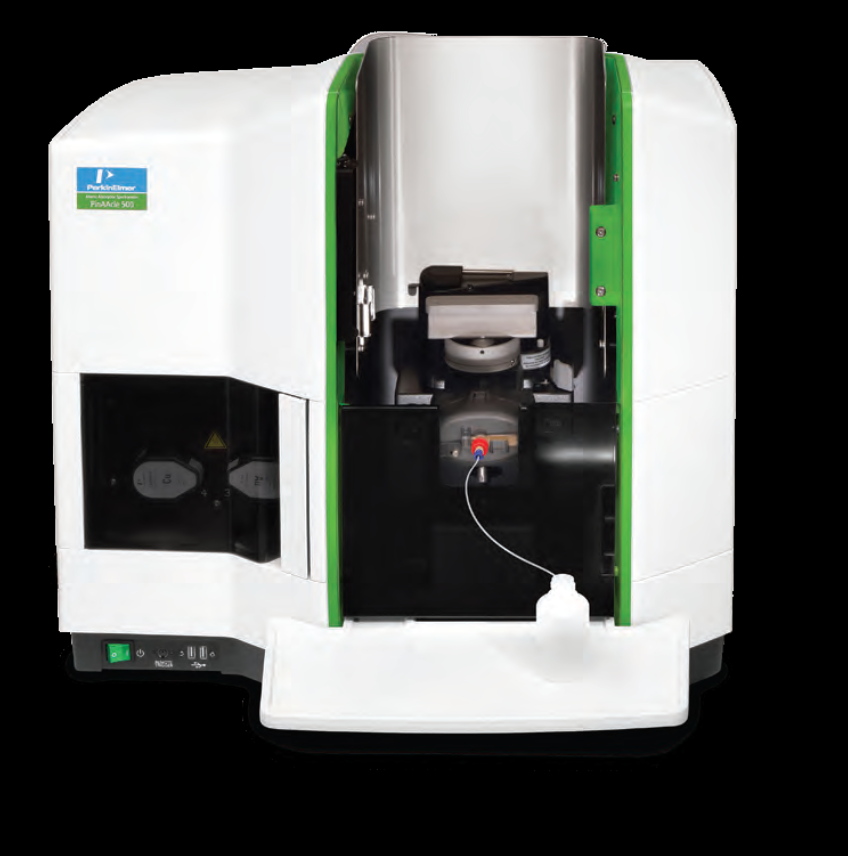

Atomic Absorption Spectrometer
Product Details:
X
Atomic Absorption Spectrometer Price And Quantity
- 1 Number
Atomic Absorption Spectrometer Trade Information
- 10 Number Per Week
- 7 Days
- Contact us for information regarding our sample policy
- All India
- CE ISO
Product Description
System Design Monochromator Littrow design with motorized drive for automatic wavelength selection and peaking.
Wavelength range: 180-900 nm
Diffraction grating: 1800 lines/mm blazed at 236 nm and 597 nm
Grating area: 64 x 72 mm
Reciprocal linear dispersion: 1.6 nm/mm (nominal)
Focal length: 267 mm
Spectral Bandwidths User selectable automatic slit widths of 0.2, 0.7 and 2.0 nm at their optimized slit height.
Automatic Lamp Selection 4-lamp mount with built-in power supplies for PerkinElmer cableless Lumina hollow
cathode and patented electrodeless discharge lamps. Computer-controlled lamp selection
and alignment via Syngistix Touch or optional Syngistix for AA software. Lamp
elements and recommended operating currents are automatically recognized and set
when Lumina hollow cathode lamps (HCLs) and PerkinElmer electrodeless discharge
lamps (EDLs) are used.
Detector Wide-range segmented solid-state detector, including a built-in low-noise CMOS charge
amplifier array.
Background Correction Built-in continuum source double-beam background correction using a high-intensity
deuterium arc lamp.
Corrosion Resistance All the PCBAs are conformal coated for complete resistance to corrosion.
Flame Atomizer
Gas Controls Fully computer-controlled with oxidant and fuel monitoring. Touchscreen or
keyboard-activated remote ignition system with air/acetylene. Acetylene flow is
automatically adjusted prior to the oxidant change when switching to or from
nitrous oxide/acetylene operation.
Safety Functions Interlocks prevent ignition if the proper burner head, the nebulizer/end cap, or the burner
drain system is not correctly installed; the liquid level in the drain vessel is incorrect; or
gas pressures are too low. Interlocks also will automatically shut down burner gases if a
flame is not detected, or if any of the other interlock functions are activated. Provision is
included for safe shutdown from all operating modes in the event of a power failure.
Sample Introduction System Modular sample introduction system consisting of a quick-change spray chamber,
burner head and nebulizer.
The introduction system is equipped with a high-strength inert mixing chamber, angled
to ensure proper drainage.
Choice of high-sensitivity, corrosion-resistant, plastic nebulizer or durable stainless
steel nebulizer.
The standard burner head is all-titanium, 10 cm, single-slot for air/acetylene operation.
Optional burner heads include: 5 cm nitrous oxide/acetylene, 5 cm air/acetylene, and
10 cm 3-slot air/acetylene.
The flame shield is polymer-coated for resistance to corrosion from acidic fumes from
the environment or from the samples.
Control and Data System

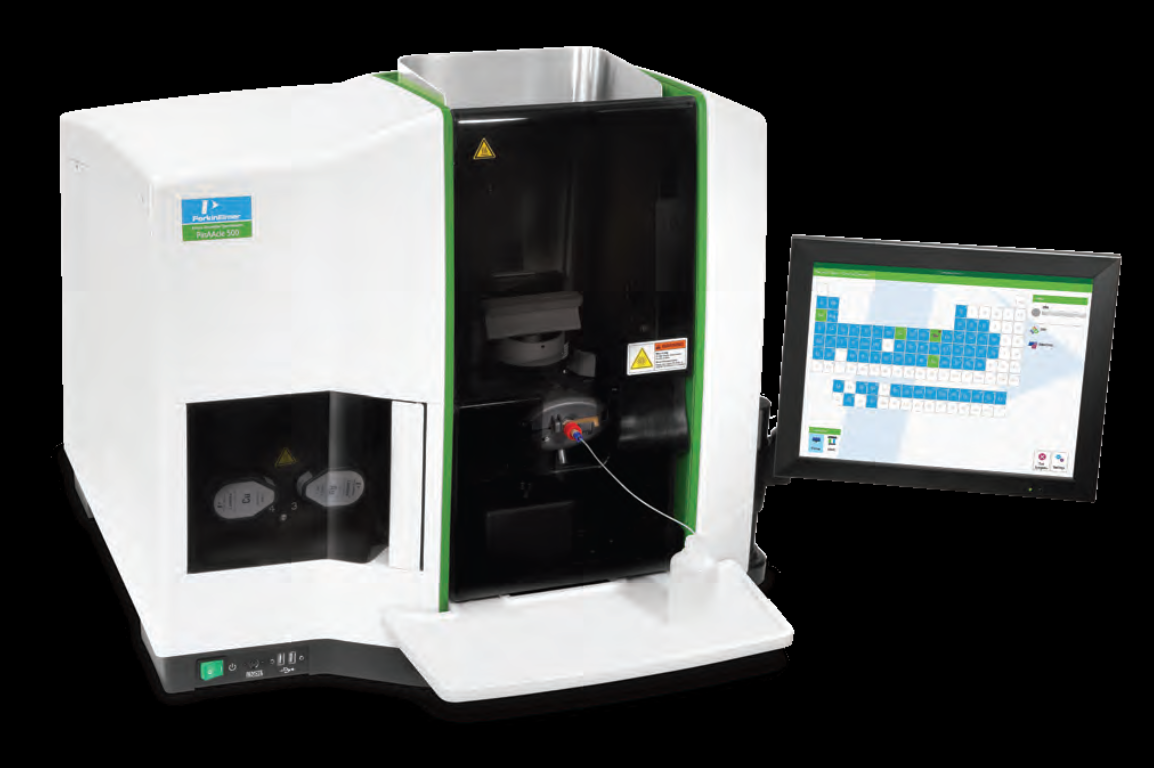

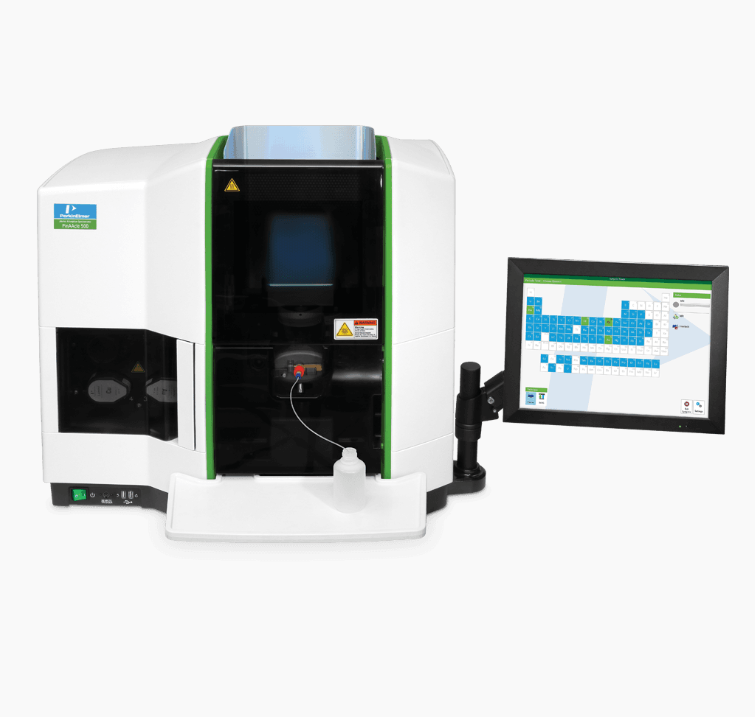

User Interface The standalone PinAAcle 500 AA provides complete control through an innovative
touchscreen interface. Its easy-to-use Syngistix Touch software enables you to start
the analysis in three steps, and offers flexibility for lamp setup, flame control, parameter
selection and sample analysis. The Tools menu provides access to recommended
conditions, sample information, method storage and recall, data transfer and service
diagnostics screens. Results are automatically stored in the Data Manager and can be
printed using standard templates. In addition to English, the PinAAcle 500 AA supports
multiple languages, including Chinese (simplified), French, German, Greek, Italian,
Japanese, Polish, Portuguese (Brazilian), Russian, and Spanish.
Display 15 26 Million display colors TFT LCD with embedded resistive touchscreen. Compatible
with VGA (640 x 480), SVGA (800 x 600) and XGA (1024 x 768). Coated for maximum
durability and lifetime.
Built-in Computer The touchscreen interface operates via a on-board computer that comes with Intel Core
i3 3.3GHz with 4GB RAM and 2.5 SATA 64GB SSD, Serial ports, USB 2.0 ports, VGA/
HDMI/DVI, and Gigabit Ethernet ports.
Data Control System In addition to Syngistix Touch software, the instrument can also be controlled and
operated via the more comprehensive, optional Syngistix for AA software operating
under Windows 7. Syngistix for AA software provides complete control of
the instrument and its major accessories, plus data handling and storage, post-analysis
reprocessing, and simultaneous second-session of the data control system.
Data Handling Instrument readings linear in absorbance (-0.500 A to +2.000 A), concentration, or
emission intensity with continuously variable scale expansion from 0.01 to 100 times.
Integration times operator-selectable from 0.1 to 120 sec in increments of 0.1 sec.
Reading modes include time-averaged integration, non-averaged integration (peak area),
and peak-height measurement. Includes built-in statistics. Up to thirty (30) standards and
a choice of proven calibration equations. Reslope of the analytical curve using a single
operator-selected calibration standard. Built-in Ethernet interface for computer connection
and use of optional accessories. Data collection time of up to 20 mins.
